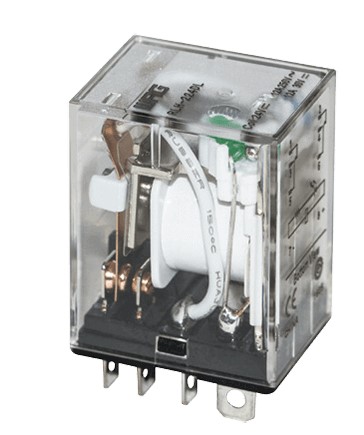

RLH-2P
• 2 Wechsler
• Nennstrom: 10 A (bis 12 A)
• Transparentes Gehäuse, der Status der Kontakte lässt sich leicht beobachten
• Breites Stiftdesign für hohen Strom
Coil data |
|
|---|---|
| Rated coil voltage | 12/24/48/110 V DC, 12/24/48/110/230 V AC |
| Rated voltage frequency | 50/60 Hz (AC) |
| Coil power | DC: 0.9 W, AC: 1.0 ~ 1.5 VA |
| Response voltage | AC:≤80%, DC: ≤75% |
| Drop out voltage | AC: ≥30%, DC: ≥10% |
| Operation time / Release time | Less than 20 ms / Less than 25 ms |
Contact data |
|
| Contact numbers | 2 C/O |
| Contact material | Ag alloy |
| Rated voltage | 250 V AC |
| Min. switching voltage | 5 V DC |
| Max. switching voltage | 250 V AC, 30 V DC |
| Rated current | 10 A |
| Min. switching current | 100 mA / 5 V DC |
| Max. inrush current | – |
| Contact resistence | < 100 mΩ (1 A/6 V DC) |
| Mechanical service life | 1×107 times |
| Electrical Service life (AC1) | 1×105 times |
General data |
|
| Rated withstand impulse voltage (Coil / Contact) | 1.5 kV AC / 1 min |
| Rated withstand impulse voltage (Between contacts) | 1 kV AC / 1 min (same contact group), 1.5 kV AC / 1 min (different contact group) |
| Surge voltage | 4 kV AC (1.2/50 μs) |
| Insulation Resistance | 1,000 MΩ (500 V DC) |
| Vibration | Malfunction 10~55 Hz (Amplitude 1.5 mm); Endurance 10~55 Hz (Amplitude 1.5 mm) |
| Shock | Malfunction 98 m/s2, Endurance 980 m/s2 |
| Ambient temperature (Operation) | -40~55℃ |
| Adapted Socket | SRH-2… |
Model designation |
Number of poles |
Coil voltage |
AC/DC |
Test Button |
Build-in protective circuit |
Special request |
| RLH | -2 | 24 | D | T | L | -XXX |
| RLH: High current relay |
1: 1 C/O | 06: 06 V | D: DC | Blank: Standard | Blank: Standard | Special type or custom code, consisting of 3 digits letters combination |
| 2: 2 C/O | 12: 12 V | A: AC | T: With test button | L: LED | ||
| 3: 3 C/O | 24: 24 V | D: Diode | ||||
| 4: 4 C/O | 48: 48 V | RC: RC | ||||
| 60: 60 V | LD: LED + Diode | |||||
| 110: 110 V | LRC: LED + RC | |||||
| 220: 220 V | ||||||
| 230: 230 V |
